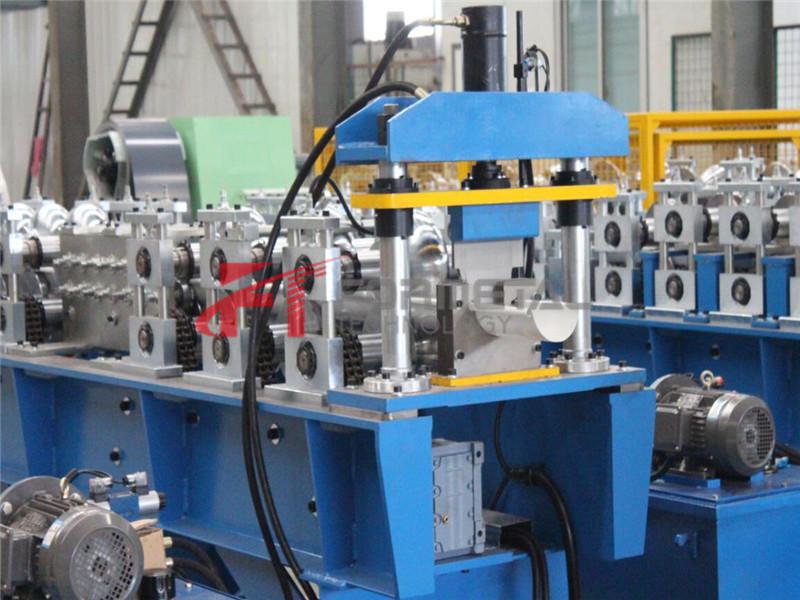

European Standard Gutter Roll Forming Machine
Description
Reviews
European Standard Gutter Roll Forming Machine is for profiling gutter, which is used for the roofing system of house. It is usually connected to downspout to be entire roof drainage system. It can continuously uncoiling, feeding, roll forming, and cutting to length. The whole line adopts PLC controlling system. It can run full automatically.
The machine can be customized as different customer is asking for different profile dimensions.
European Standard Gutter Roll Forming Machine can do the profile according to customer’s different requirements.

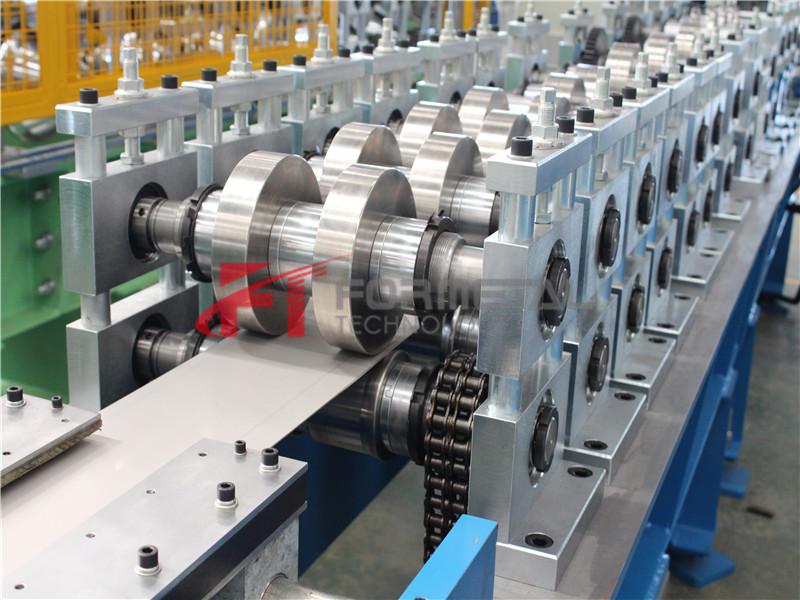

Accurate Roll Forming Process
1)Machine frame: welding structure with blasting treatment
2)The roller is made by high quality no.45 steel with hard chrome-painted
3) Roller inner supporting structure type: guiding column
4) Planetary gear speed reducer motor driven, back/forward roller driven by chain.High Quality Cutting System

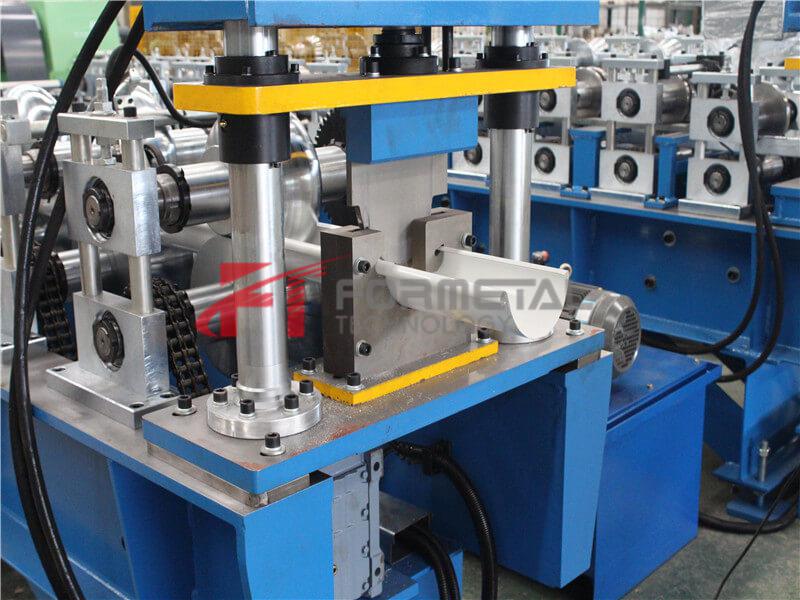

1) The cutting blade material is Cr12 with quenched treatment, there is no material wasted.
2) It adopts hydraulic cutting
Work flow
Decoiling → Roll forming → Cutting → Running out

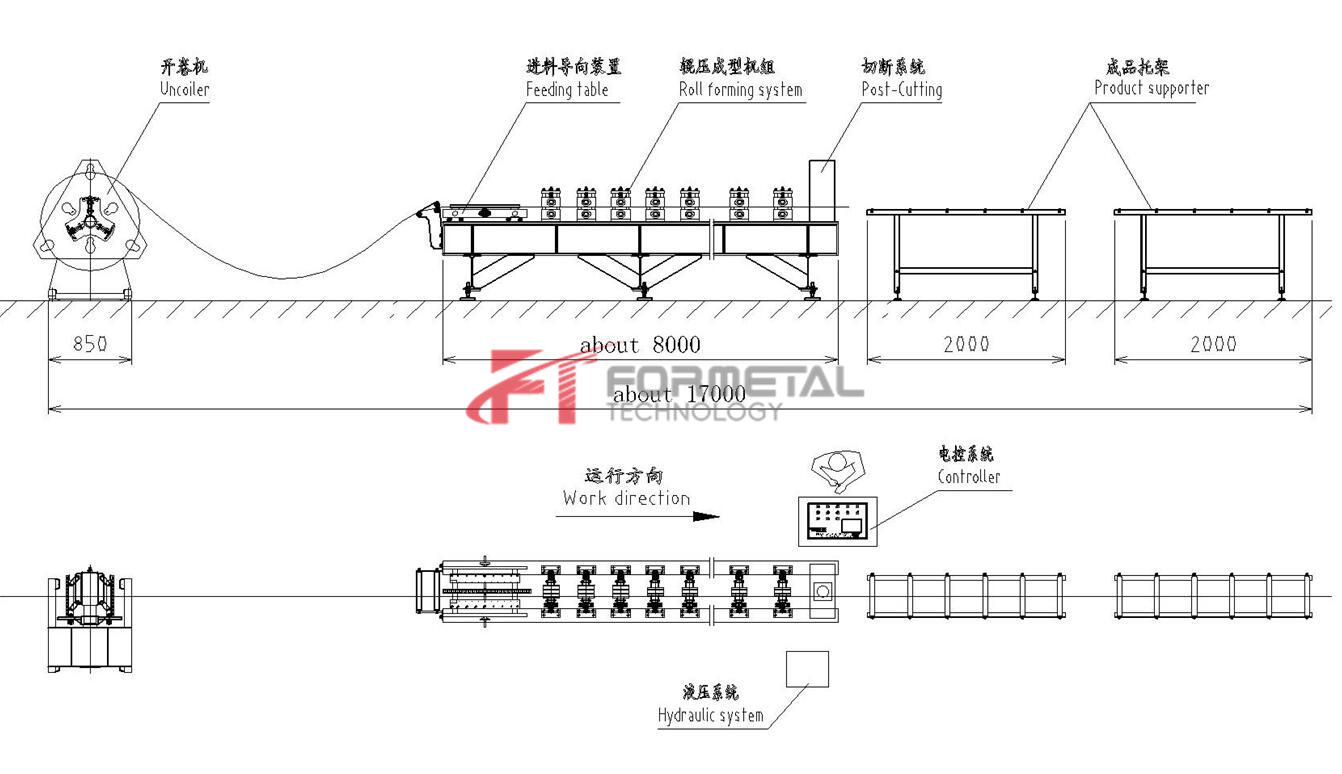

Layout drawing of European Standard Gutter Roll Forming Machine
Product

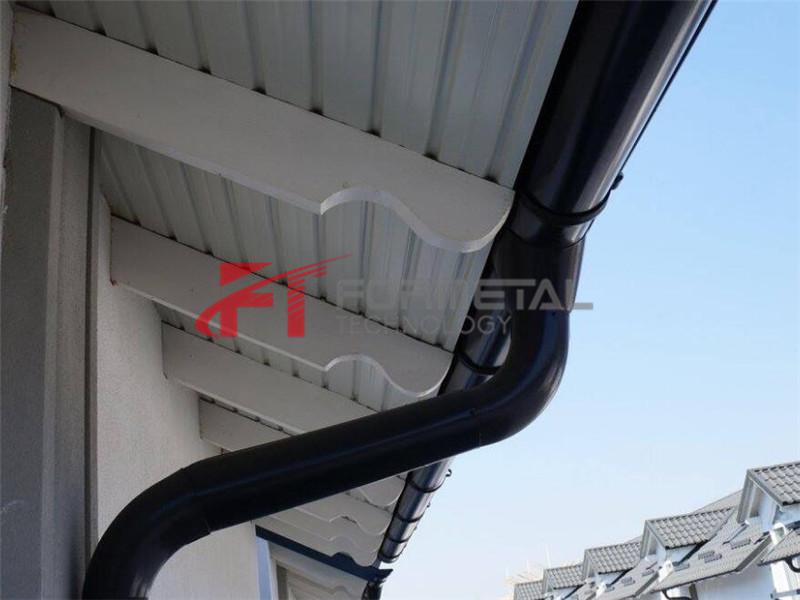

application of European
Standard Gutter Roll Forming Machine

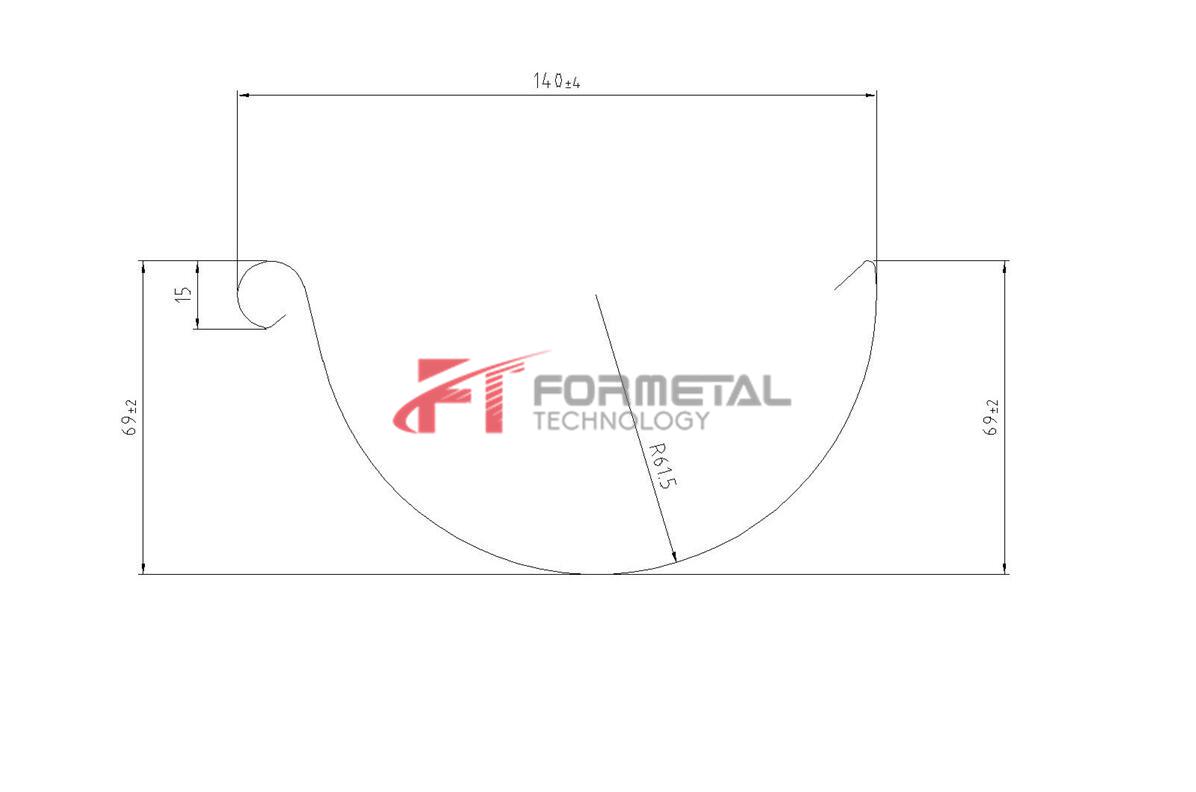

The gutter profile is not fixed. Most of time, we are especially manufacturing the machines according to different customers’ technical requirements.
Packaging Details
1. One *40GP container for loading one set of the machine.
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in wooden box;
4. All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
